nPZ2100
Power Saving IC
Product Overview
The nPZ2100 is a Power Saving IC (PSIC) designed to dramatically reduce energy consumption in battery-powered and energy-harvesting IoT systems. It autonomously manages sensor communication, sensor power and MCU wake-ups, allowing the system to collect the data it needs without keeping the MCU continuously active. By powering the MCU and sensors only when required, the nPZ2100 can reduce system power consumption by up to 90% in sensor-based applications.
The nPZ2100 can autonomously manage up to six I²C or SPI sensors, polling them at defined intervals and waking the MCU only when configurable thresholds or events require system attention. Integrated power switches, 256-byte SRAM, an 8-bit ADC, 36-bit time counter with alarm and watchdog, event counter and flexible I/O provide the functionality needed to build intelligent, always-on sensing systems while keeping energy consumption exceptionally low.
With operation from 1.7–3.6 V and an idle current of just 200 nA, the nPZ2100 is particularly well suited to long-life battery, energy-harvesting, tracking, metering, logging and monitoring applications amongst many other power constrained sensing devices.
Main Features
- Autonomous management of up to 6 sensors
- Polling of sensors with threshold-based wake-up triggers
- Communication over I²C or SPI
- Flexible I/O pins for interrupt inputs or trigger outputs
- Industrial temperature range
- -40ºC to +85ºC
- Power-aware operation for energy-harvesting
- Reduces sensor polling frequency and MCU wake-ups when system power levels are low
- 256-byte SRAM
- Initialization commands for sensors
- Logging of sensor values
- General purpose user data
- 36-bit time counter with alarm and watchdog
- Keeps track of time and wake-ups at a specified alarm
- Watchdog can power-cycle MCU after certain time
- General purpose event counter
- 32-bit counter for input pin or sensor power-on events
- 8-bit ADC
- Three channel ADC (two external + internal references)
- Configurable thresholds for wake-up events
Key Specifications
| Supply voltage | 1.7 - 3.6 V |
| Idle current @ 3.0V and 22°C | 200 nA |
| Polling current @ 3.0V and 22°C | 1.0 µA |
| Host switch current | 10 mA |
| Sensor switch current (×4) | 1 mA |
| I²C frequency | 100 kHz |
| SPI frequency | 100 kHz |
| Temperature range | -40°C to +85°C |

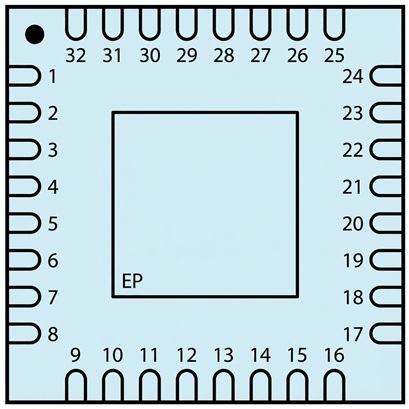

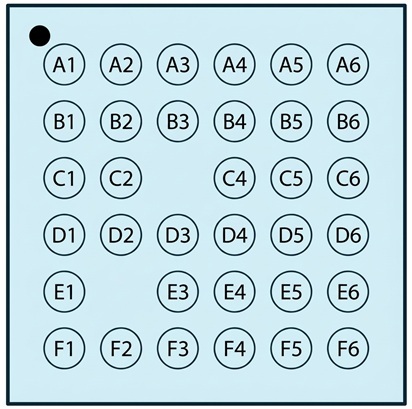

| Package options | QFN32, 5.00×5.00 mm; WLCSP34, 2.50×2.50 mm |

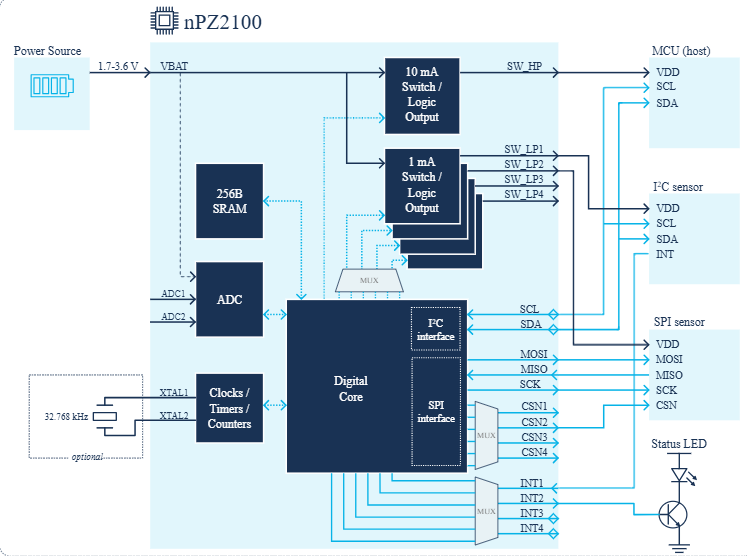

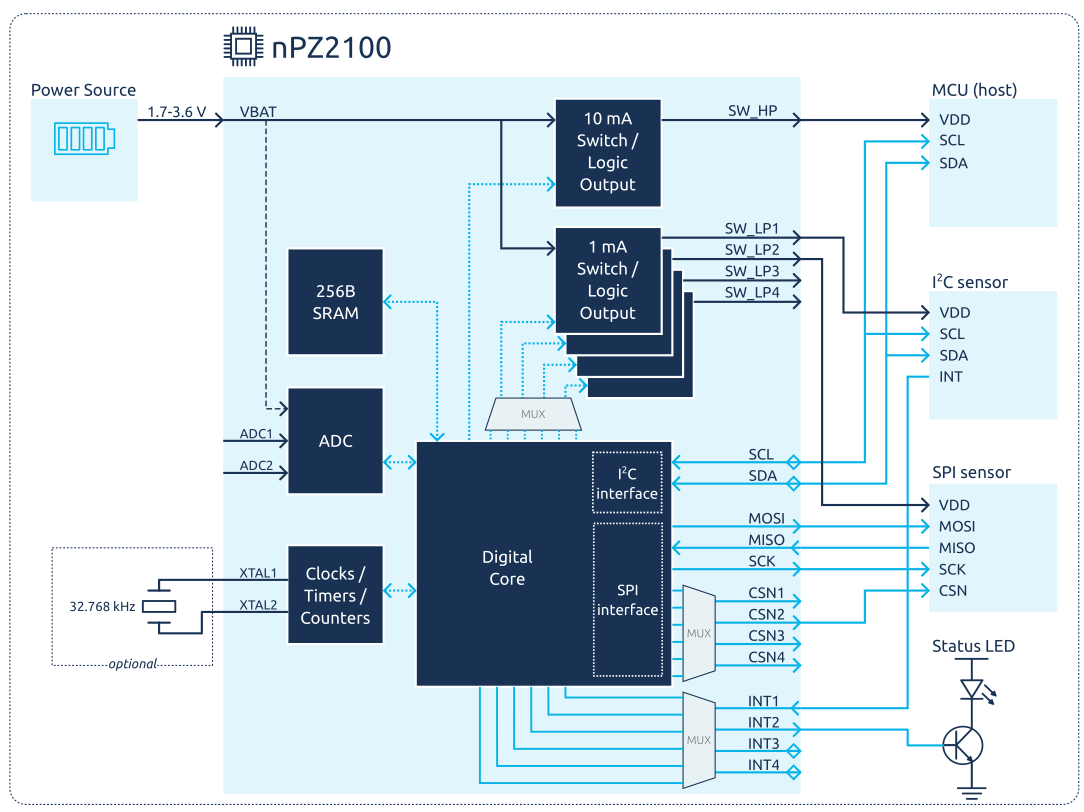

Block Diagram
Documentation
Access the official product documentation page for datasheet, one-page leaflet (PID), application notes.
Development Kits
Get started quickly with official devkit, STAMP board, IC samples, nPZero Configurator PC software and sample code.

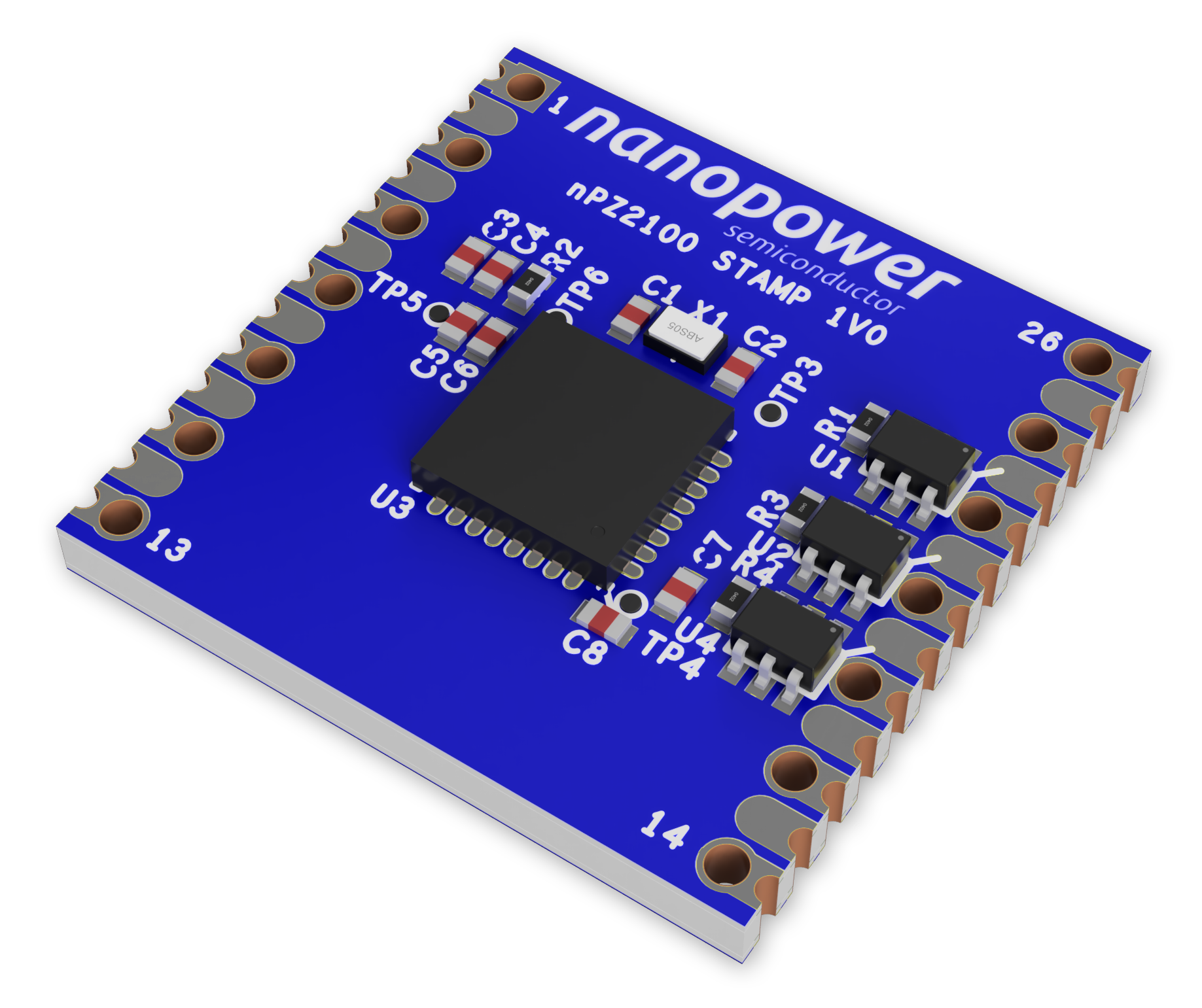

The Stamp is designed with the necessary circuitry and components to be implemented with minimal effort in prototypes. Simply solder on the nPZero Stamp, and you have a system with nPZero power-saving capabilities.

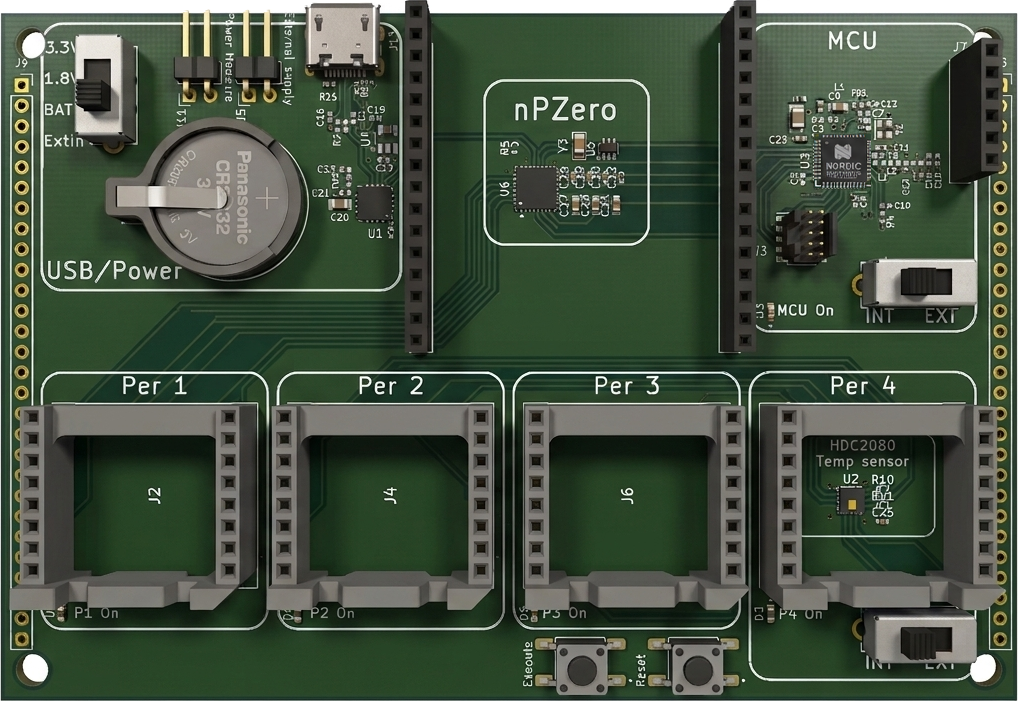

The nPZero 2100 Development Kit will be the main development platform for the nPZ2100 device, alongside the nPZero 2100 Stamp. The nPZero 2100 Development Kit is provided as a single board integrating the nPZero 2100 power-saving IC with a nRF52833 host MCU from Nordic Semiconductor and two sensors.
Additional sensors can be added using 2x MikroE Click™ sockets, or through a side connector, for a total of 6 sensors.
Click the red button above "Register for Devkit".
Technical Support
Access our technical support team, official GITHUB, API libraries, and direct submit tickets for technical inquiries.
